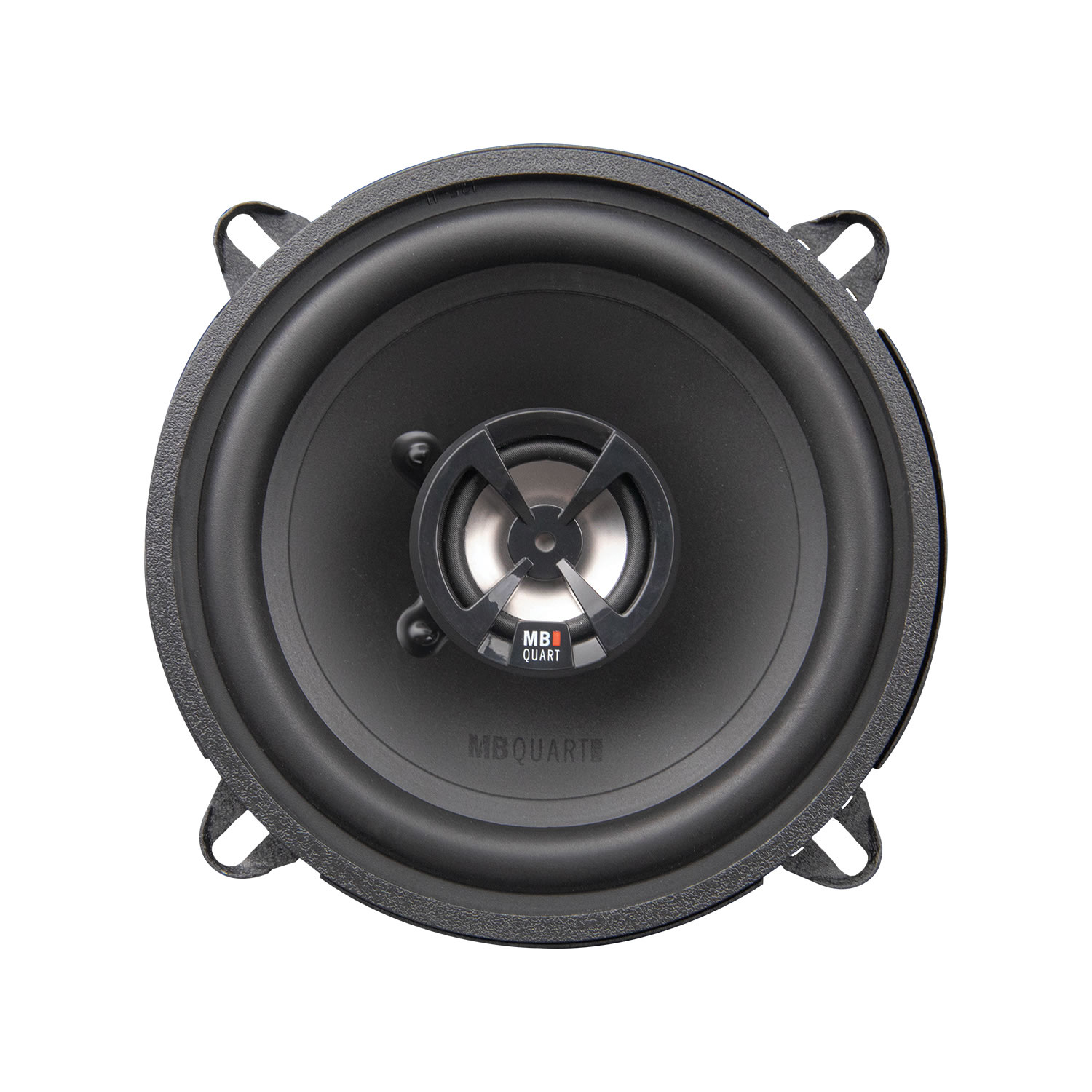

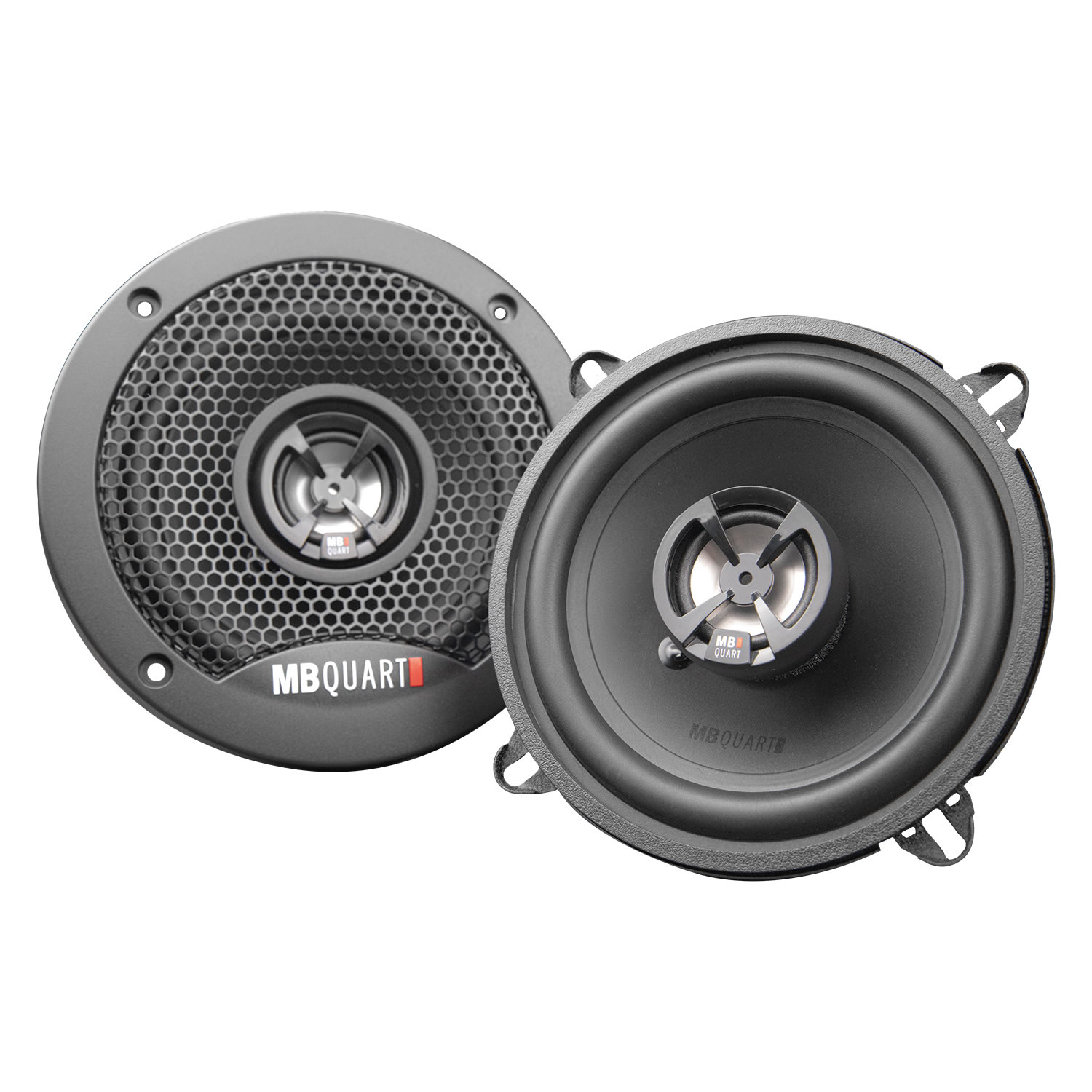

MB Quart Discus 5.25-inch 2-way coaxial car speakers with aluminum inverted dome tweeters and butyl rubber surrounds.

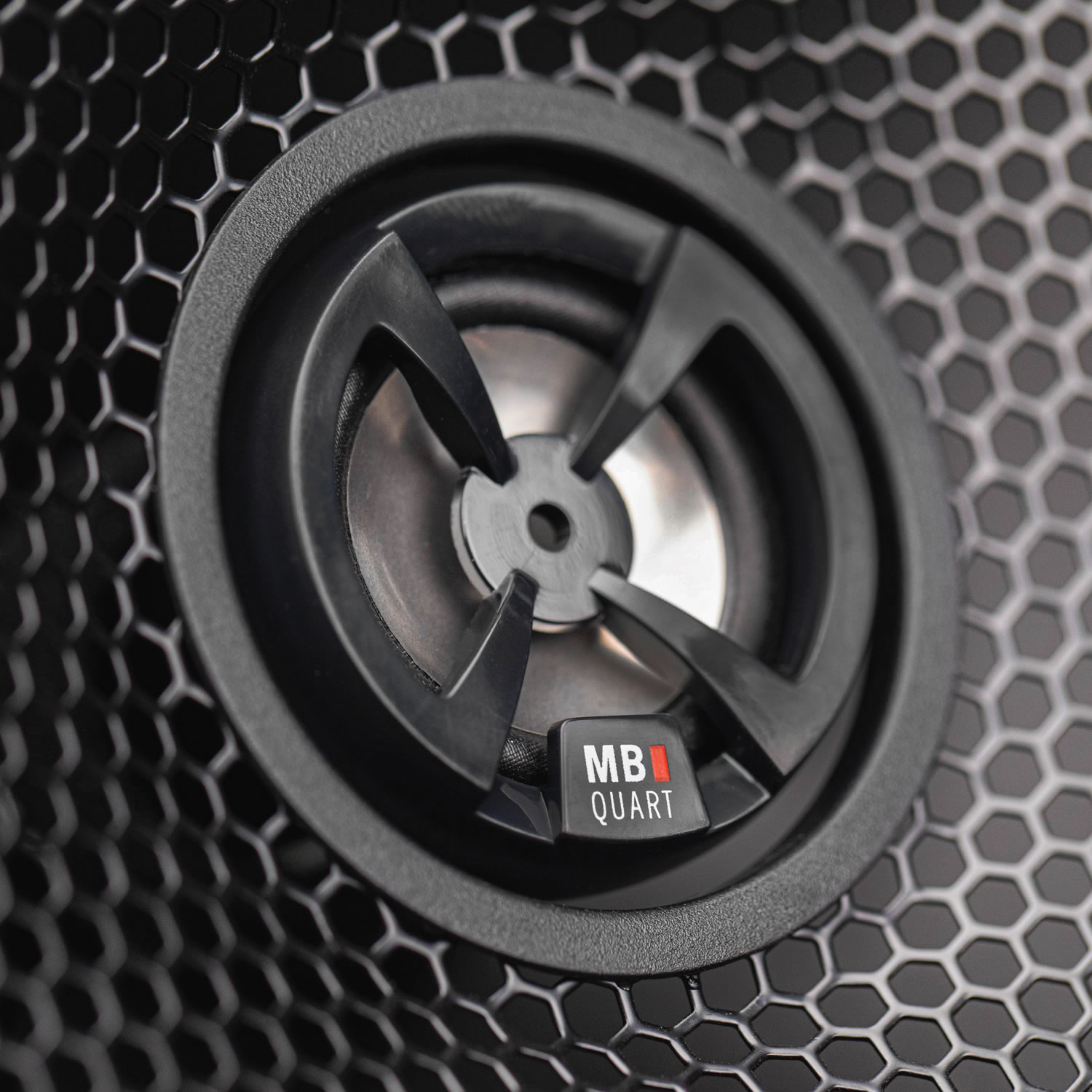

| Tweeters |
Aluminum inverted dome tweeters deliver great sound with increased reliability. |
|---|---|

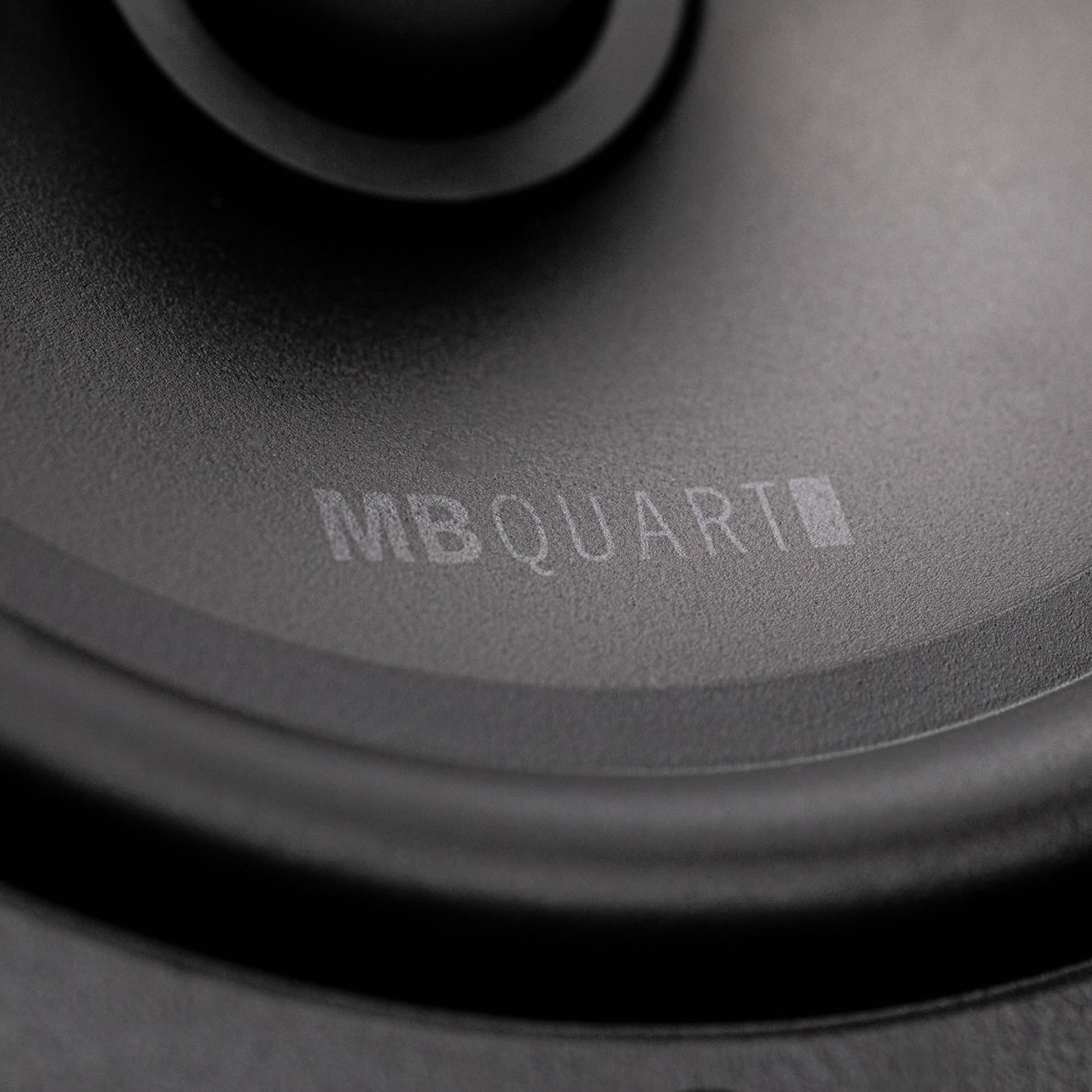

| Cone Material |
Lightweight thermal-formed polypropylene cones enable faster midrange response. |
| Surround / Cone Coupling |
Butyl rubber surrounds provide durability and deeper mid-bass impact. The cone/surround connection utilizes a high temp adhesive which assure the cone and surround do not separate in high power uses or extremes of weather. |
| Voice Coil / Former Assembly |
Pure Copper voice coil creates a strong magnetic field with a very thin extrusion. Kapton voice coil former is lightweight and efficiently dissipates heat. |

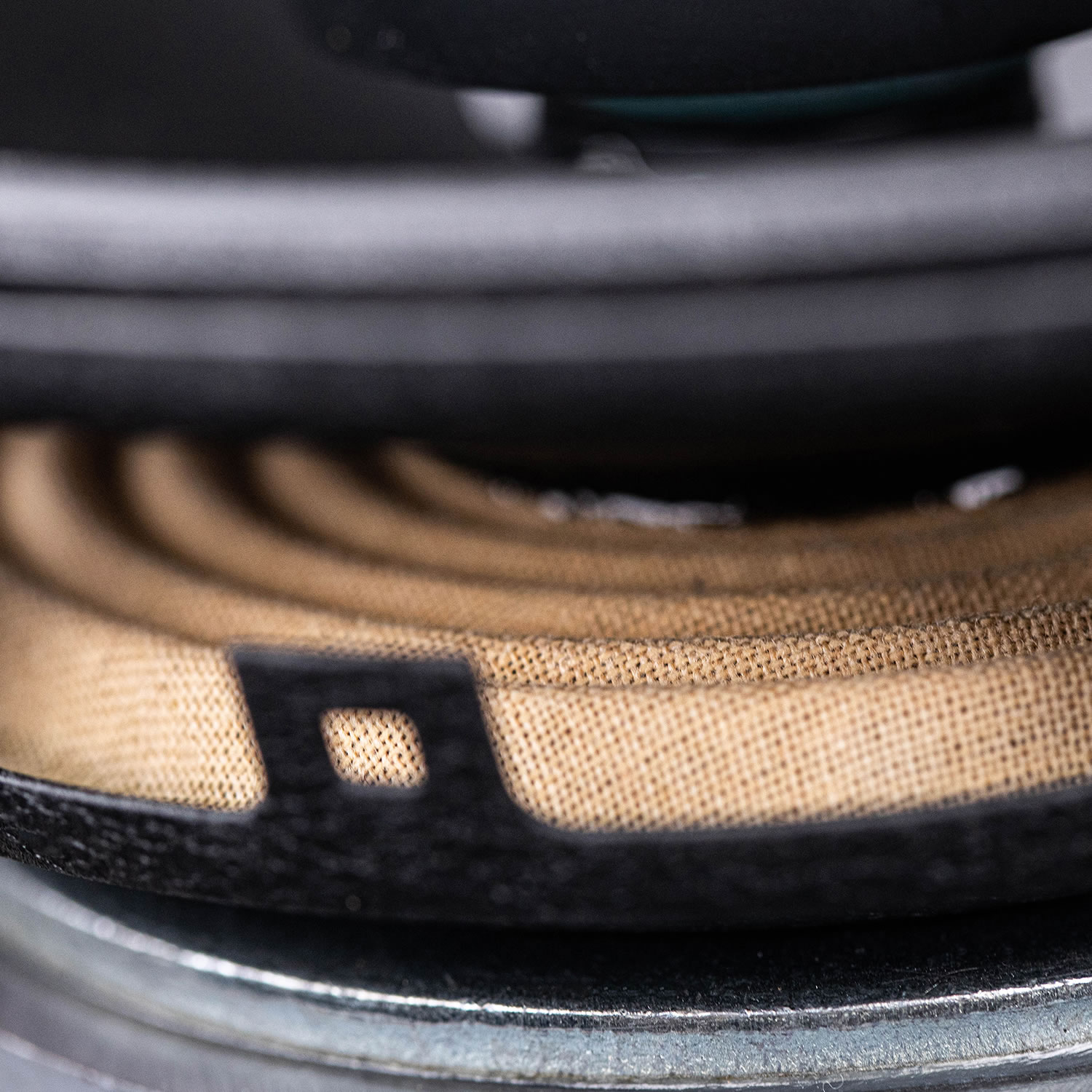

| Spider |
Natural fiber allows flexibility while the infused epoxy gives strength during the manufacturing process. |
| Cooling System |
Over-coil cooling system allows air exchange over the voice coil through the spider |
| Crossover |
6dB internal crossover integrated into the design to assure smooth midrange to tweeter frequency transitions. |
| Frame |
Heavy gauge progressive-die stamped steel frames for ultimate rigidity. |

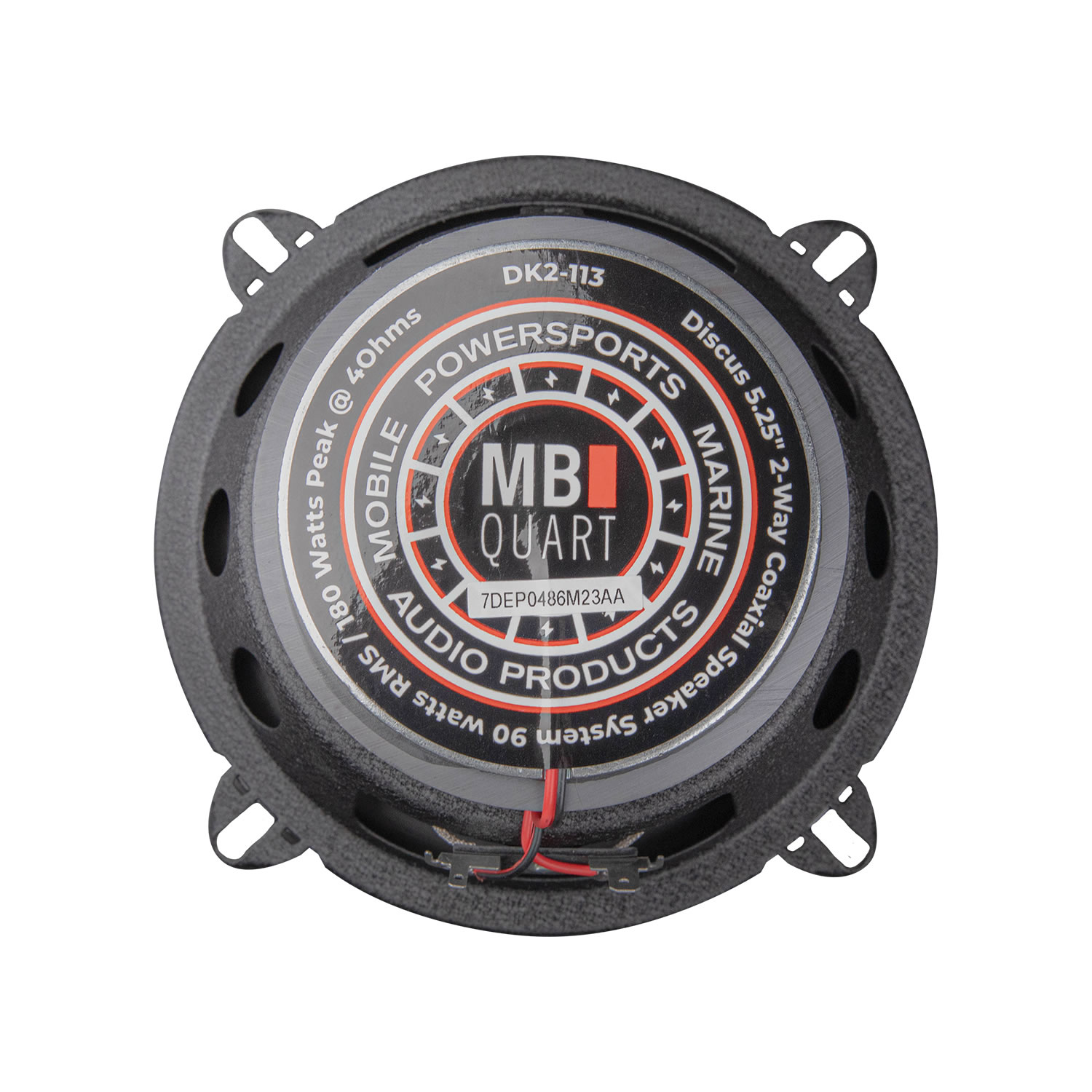

| Motor |
Ferrite magnt motor creates a strong magnetic field while remaining small enough to fit nearly every application. |

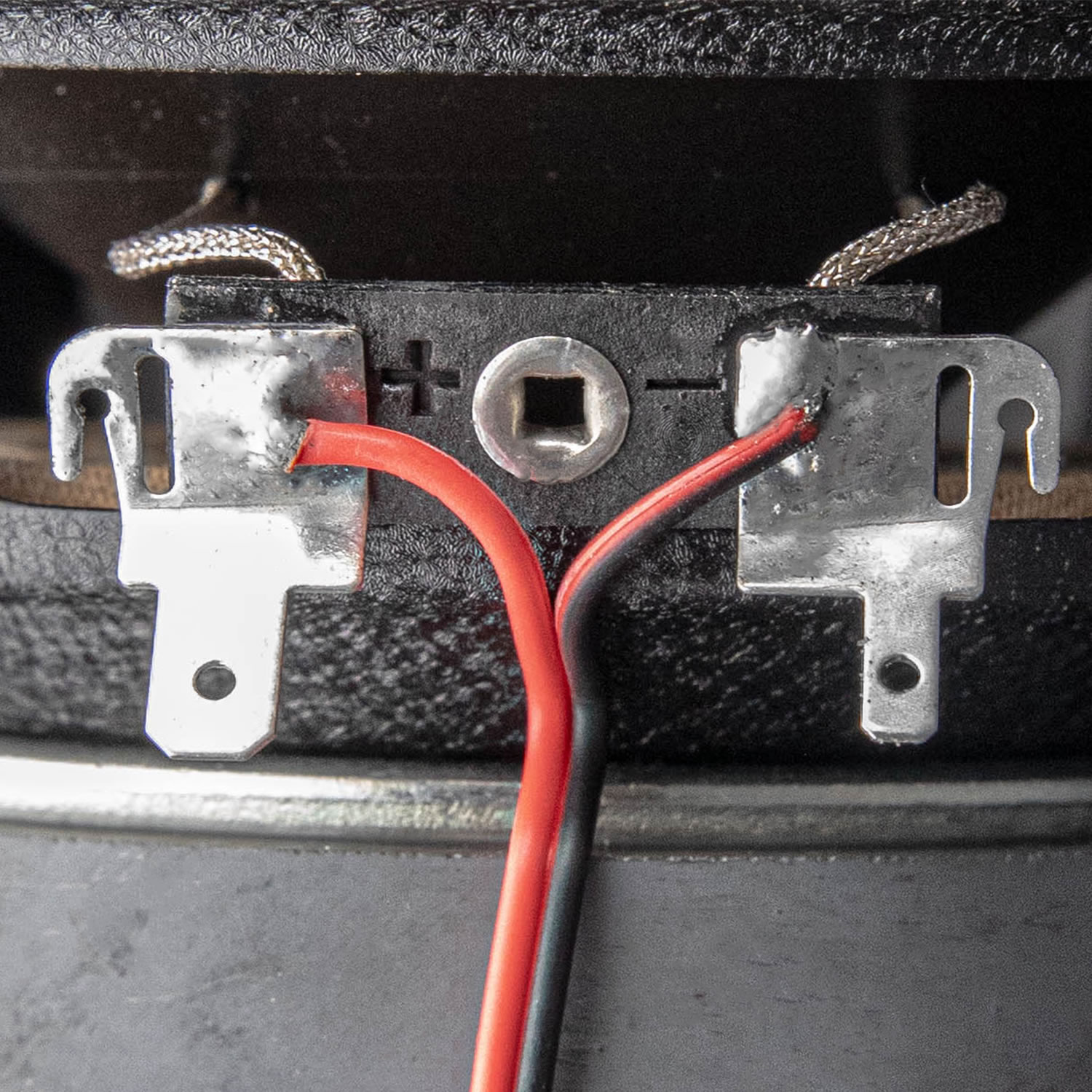

| Connectors |
Use spade connectors or solder direct for the best connection. Tinsel Leads: Highly conductive while remaining flexible during high power applications. |
