Engineered to be the most reliable winch on the market. The IRONMAN 4X4 Monster winch collection has a range of features for the most extreme vehicle recoveries. Designed in Australia for military, mining, and recreational use, the Monster Winch was designed with a sole mission to be the most reliable, versatile electric winch on the market.
Starting with the high power, low friction motor. This heavy-duty winch puts out 5.5hp and features high strength alloys and ultra-slick low friction materials for added durability and heat reduction. The straight engage clutch paired with a 3 stage planetary gearbox at a 265:1 gear ratio allows all of these components to take full advantage of the winch's 9500 pounds of pulling power.

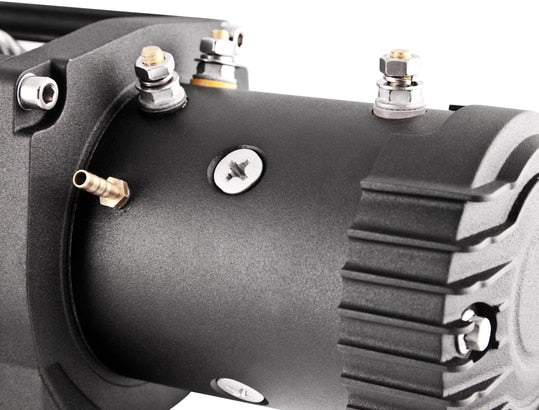

The motor is wrapped in a watertight IP69 rating housing to keep the internals free from moisture. For ultimate performance in wet climate conditions, the IRONMAN 4X4 Monster winch features a winch breather, directly integrated into motor the housing. This patented design was conceived from the demanding recoveries in the Australian outback. When a winch in submerged and being used in a recovery situation, the heat generated by the internal components creates a vacuum, this can suck contaminates into the housing. The Monster winch breather eliminates this issue. In a situation with the winch fully submerged, you can count on the motor to operate at full capacity without any distractions. These benefits will ensure this winch is in prime working condition for the life of the vehicle.

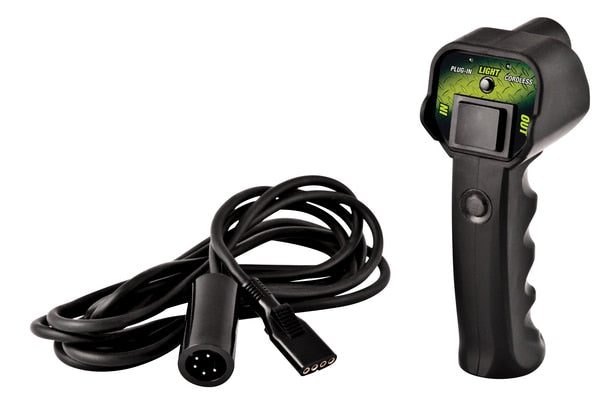

Controlling this 9500lbs pulling capacity workhorse is a breeze, a handy rechargeable wireless controller allowing the operator to control the winch from the front seat of the vehicle or up to 100ft away. Prefer a hard line connection, hook up the supplied remote cable and crack on with your recovery.
Dealing with a tricky winch situation in the dark is not an issue. The wireless remote has a built-in flashlight handy for night time winching and camp use.
The IRONMAN 4X4 electric winch comes with a 5-year limited warranty. This offroad winch uses a universal bolt pattern for fitment to your bumper and includes all hardware and electrical wiring required for the procedure. Installation requires simple tools and a couple of hours.
Features:
- 92' Steel Rope Rated line pull of 9500 lbs
- Wireless Remote with a built-in flashlight
- Integrated breather and line to ensure no intrusions while submerged
- IP69 rated and built with durable aluminum structure with flat black powder-coated finish and stainless steel fasteners
- Large diameter winch drum with steel sleeve is strong, lightweight reduces line wear, and has an integrated rope anchor for easy rope installation
- 5-year warranty for years of worry-free operation
Includes:
- 1 x 9500lbs Monster Winch
- 1 x pre-spooled 92' steel rope
- 1 x roller fairlead
- 1 x wireless remote control
- 1 x remote control cable
- 1 x winch line damper blanket
| Winches Brake |
Automatic Cam Lock In Drum |
|---|---|
| Winches Motor |
5.5 HP |

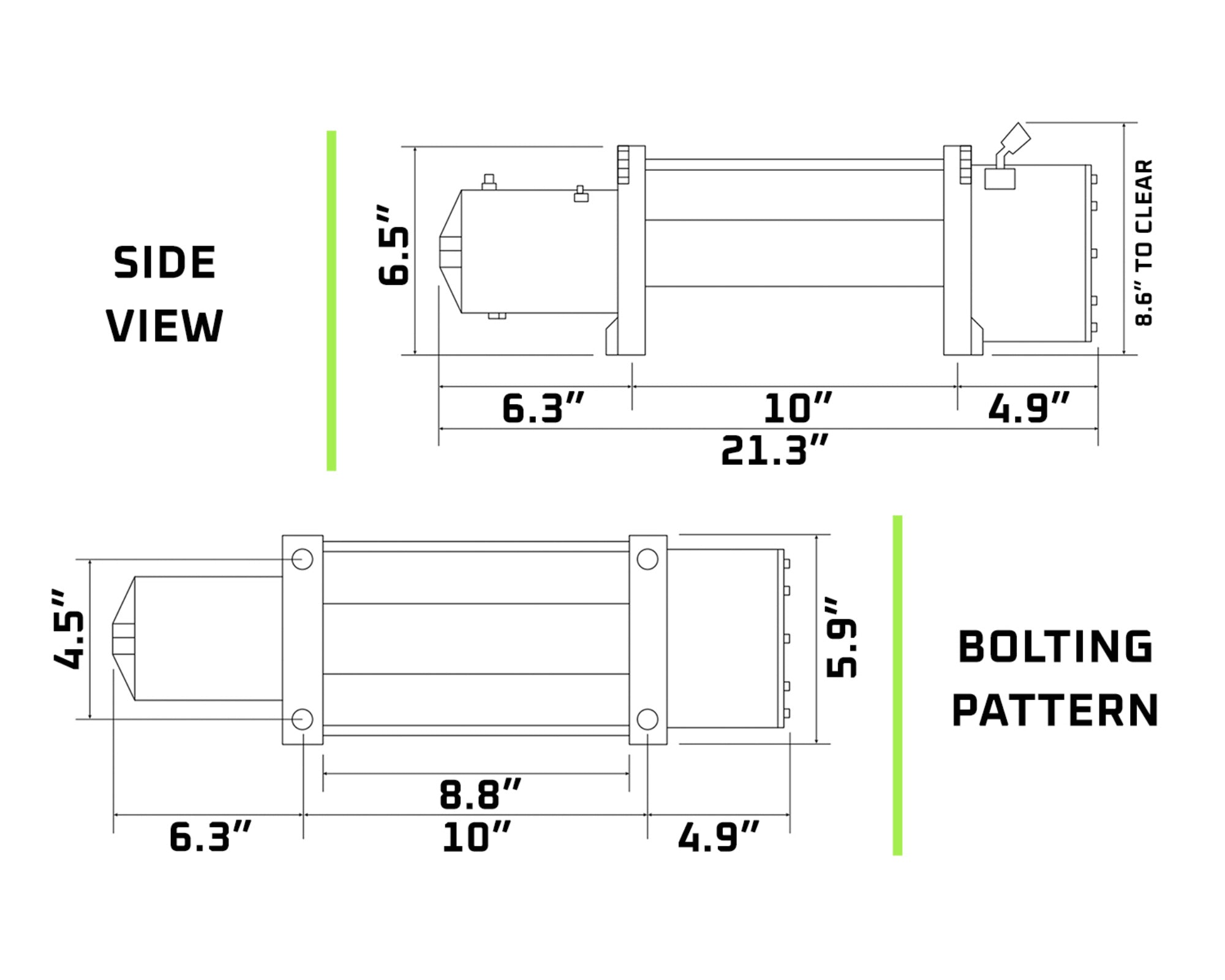

| Mounting Bolt Pattern |
10" x 4.5" |
| Dimensions |
21" x 6.5" x 6.5" |
| Winches Cable Diameter |
0.3125" |
| Winches Cable Material |
Steel |
| Capacity |
9,500 lbs |
| Control Box w/ Cable Ends Dimensions |
4.7" x 5.2" x 4.1" |
| Winches Gear Train / Reduction Ratio |
3 Stage Planetary / 265:1 |
| Winches Hand Control Length |
12 ft |
| Brake |
Automatic Cam Lock In Drum |
| Motor |
5.5 HP |
| Control Box Mounting Bolt Pattern |
5.6" x 2.2" |
| Control Box Dimensions |
3.7" x 5.2" x 4.1" |
| Dimensions |
21" x 6.5" x 6.5" |
| Weight (lbs) |
90 |
| Weight (lbs) |
90 |
| Winches Cable Length |
91 ft |
| Winches Hand Control Range |
100 ft |
| Cable Diameter |
0.3125" |
| Cable Material |
Steel |
| Capacity |
9,500 lbs |
| Gear Train / Reduction Ratio |
3 Stage Planetary / 265:1 |
| Hand Control Range |
100 ft |
