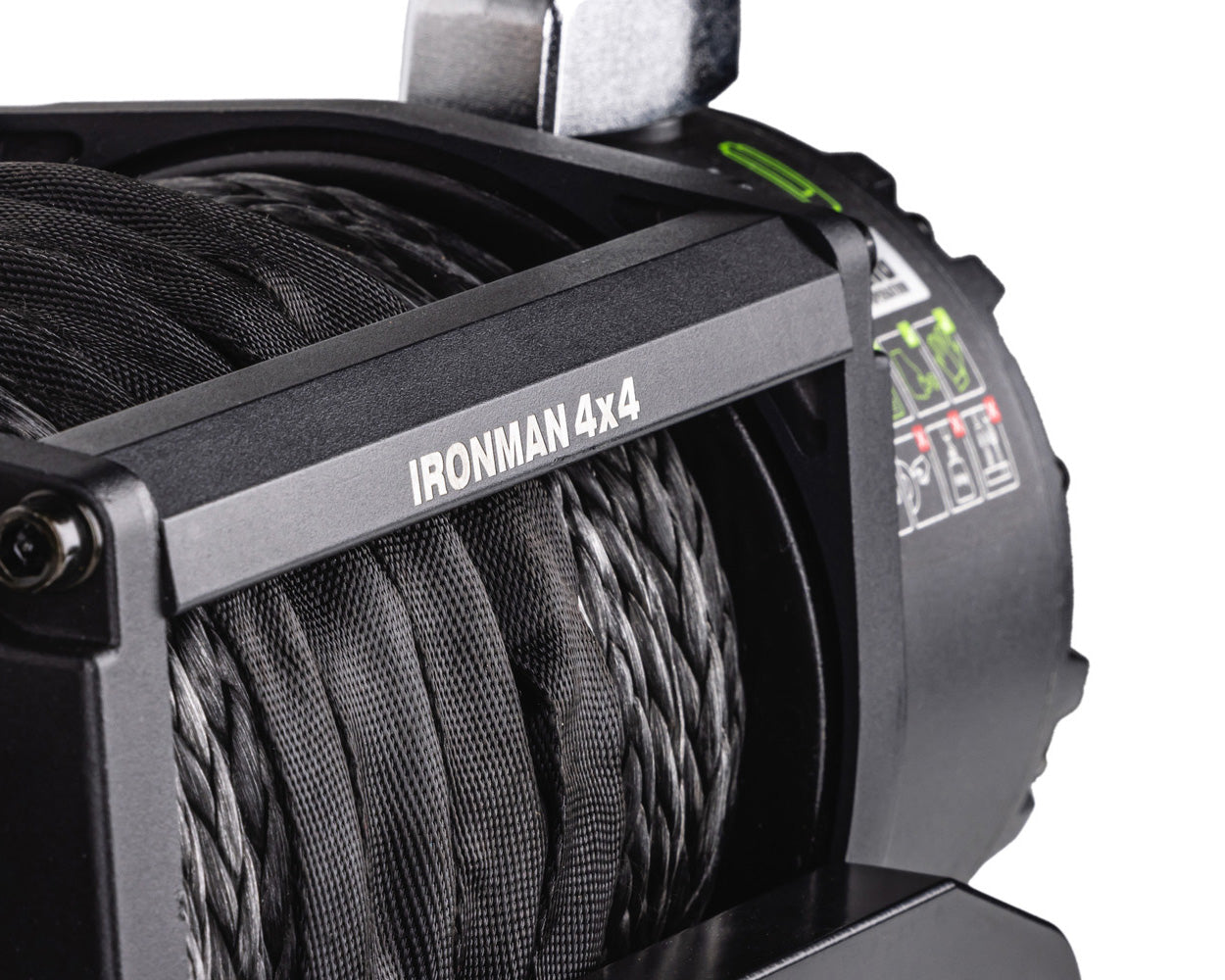

Superior Durability: Built with over a decade of development, the Frontier Winch Range offers unmatched reliability with low-maintenance, synthetic rope designed to withstand the toughest conditions.
Water Resistant Design: With an IP68 rating, the winch can be submerged up to 5 feet for 30 minutes, allowing you to tackle wet and muddy terrain without compromising performance.
Advanced Breather Technology: The built-in breather protects seals by expelling moisture, enhancing the winch's durability and longevity, even in extreme environments.

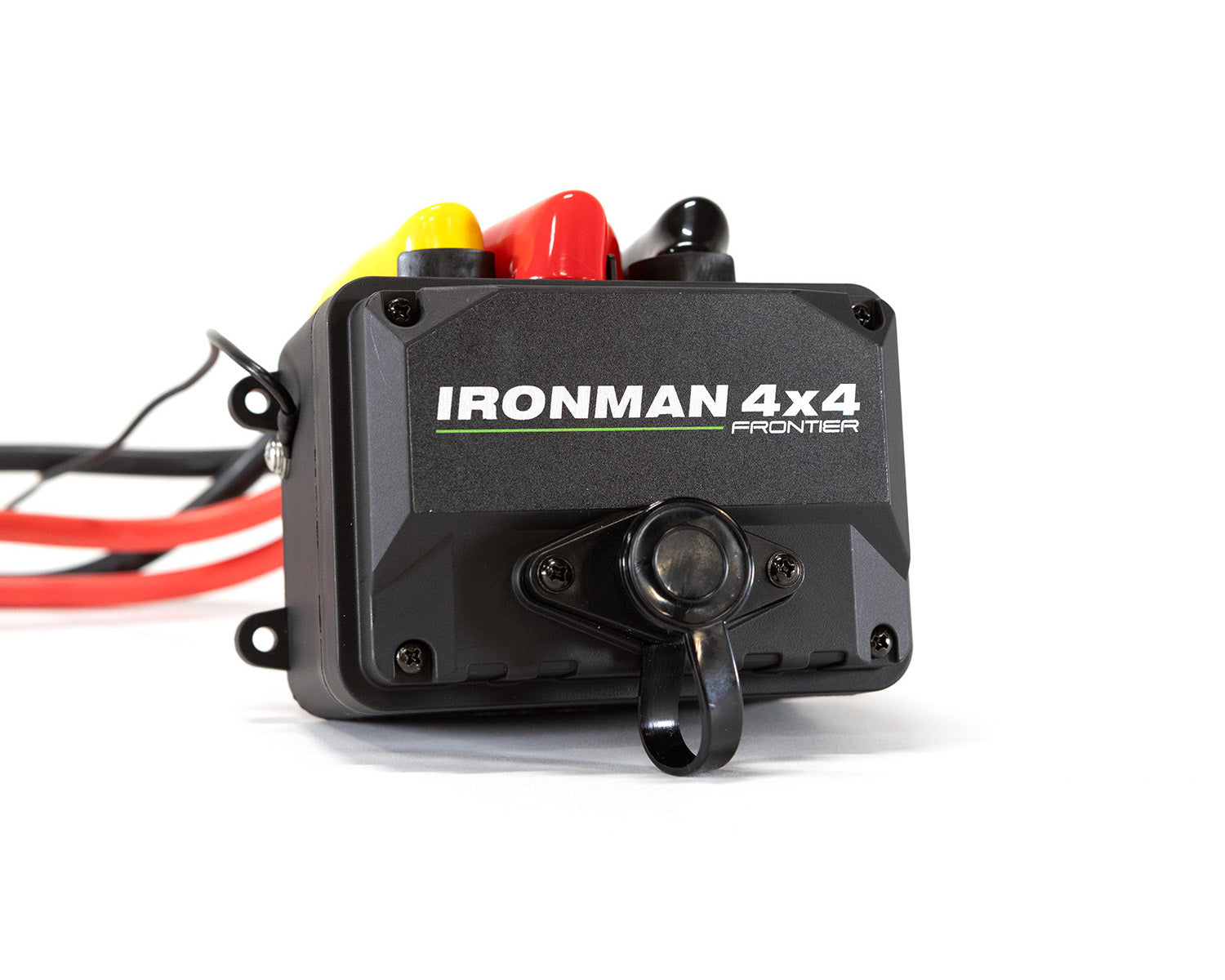

Dual Remote Functionality: Equipped with both wireless and plug-in remote controls, the Frontier Winch offers flexible control options, ensuring safety and convenience during recovery operations.
Powerful Performance: Powered by robust 4.5 HP(9,500 lb) or 6 HP (12,000 lb) motors, with up to 28 to 34 feet per minute line speed, this makes for a powerful and efficient tool for all your recovery needs.
Long-Term Warranty: Backed by a 5-year mechanical warranty, the Frontier Winch delivers peace of mind with its proven mechanical design and reliability in the harshest environments.
| Winches Brake |
Auto cam lock-in brake |
|---|---|
| Winches Motor |
4.5 HP |
| Rating |
IP68 |
| Winches Cable Diameter |
3/8" |
| Winches Cable Material |
Synthetic Rope |
| Capacity |
9,500 lb |
| Powers |
Voltage: 12 V
Current Draw @ 12 V: 74
Max Current Draw @ 12 V: 350 |
| Control Box w/ Cable Ends Dimensions |
21.1 x 6.3 x 10.5" |
| Winches Gear Train / Reduction Ratio |
Ratio: 218:1 Type: 3 Stage Planetary |
| Dimensions |
With Control Box: 21.1 x 6.3 x 10.5"
Without Control Box: 21.1 x 6.3 x 7.2" |
| Weight (lbs) |
60.5 lbs |
| Winches Cable Length |
82 ft |
| Battery |
Wireless remote uses a CR2450 |
